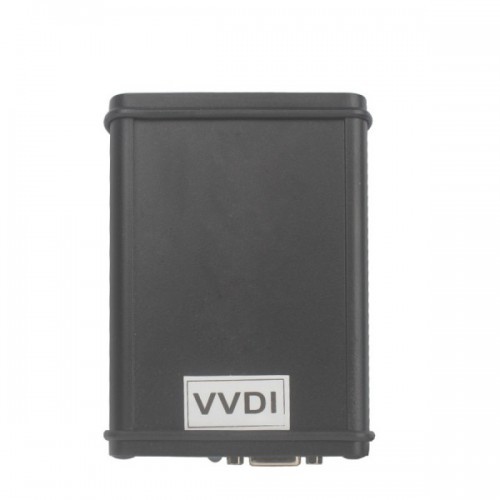

Xhorse V3.5.4 VVDI V-A-G Vehicle Diagnostic Tool Update

Name: Xhorse V3.5.4 VVDI V-A-G Vehicle Diagnostic Tool Update
Brand: Daxxer Shop | Xhorse
Price: 1139 USD
Availability: InStock

1. VVDI for the vehicles VW Audi-Powerful function tool for VAG vehicles
2. Latest Version: V3.5.4
3. Frequently Update
4. Support Most V-A-G Vehicles

0.0 (0 Reviews)

0 Sold

$1,139.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

V3.5.4 VVDI V-A-G Vehicle Diagnostic Interface

Top 7 Reasons to Get VVDI:

1. Latest Version: V3.5.4

2. Update Online

3. Support Most VAG Vehicles

4. Powerful Function Tool for VAG Vehicles, Especially Key Programmer and Mileage Correction.
5.Add Component Protection Function Since V2.8.2 Version
6. Operating System: Win7 and XP

7. The VVDI IMMO Plus V3.5.4 Includes the VAG Commander and Tag Key Tool Software. You Don't Need to Reinstall These 2 Software Separately Anymore

Notice:
1. Language: English
2. Only offer us the serial number of condor key cutting machine, can we open the authorization to read pin,cs,mac for you freely.
3. If customers don't like the newest firmware, you can downgrade to the 19.2 Version, then can use the vag 8.6 software or immoplus tool software.

You can upgrade and downgrade vvdi firmware by yourself now.
4. If your VVDI is not from us, but you also want to update yours. You need pay 9.59USD for each update

VVDI 3.5.4

1.This version DON't need update firmware

2.Fix MED17/EDC17 calculate PIN, CS, MAC

3.Fix update online

VVDI 3.5.3
1.This version need the newest firmware support
2.Fixb bug for A3/TT/R8 CDC32xx
3.Auto reset cluster after change KM in touareg CAN cluster
4.Fixb bug for learn key in touareg k protocol
5.Add new type for 2013 NEC24C64 TFT color display(3D cluster with SW:0703)
6.Add support to flash E type FRF firmware
7.Immobilizer data tool - Santana immobox 24C04 bug fix
8.Immobilizer data tool - Yamaha Moric S29190 bug fix
9.Immobilizer data tool - Fix bug for landrover 9S12
10.Immobilizer data tool - add support GreatWall Delphi immobox 93C66 - 6pins
11.Immobilizer data tool - add support Rover Discovery 3
12.Immobilizer data tool - fix bug for Koleos 9S12 make key with PCF7936 transponder
13.bugfix

VVDI Includes 3 Parts: ImmoPlus, VAG Commander software, Tag Key Tool function.

1. ImmoPlus supports prepare dealer's key for VAG new cars. Such as VW 4th/5th immobilizer. Even the cars lost all working keys or with keyless.
2. VAG Commander Software can do diagnose for VAG cars. Also change KM, read PIN, learning key etc.
3. Tag Key Tool is used to chipset read/write. Make key with eeprom dump file etc.

VVDI Support Car List:

1 AN002 - KM-CAN
1 AN003 - PIN-CAN
1 AN004 - IMMO panel
1 AN005 - IMMO panel EDC16
1 AN006 - KM/PIN K-Line
1 AN008 - Flash Counters
1 AN009 - Key learning
1 AN010 - Airbag EEPROM
1 AN011 - TV Activation
1 AN012A- EDC16 Odometer
1 AN012B- EDC16 EEP/PIN/IMMO-off
1 AN015 - Flash Memory ECU
1 AN016 - Dealer key learning
1 AN018 - Dealer key learning Q7
1 AN019 - Prepare Dealer Key Q7
1 AN021 - ME7 EEPROM by CAN
1 AN022 - CDC32xx Programmer
1 AN027 - Q7 2008

China VAG Vehicle Diagnostic Interface VVDI Functions:

1) Extracting security access codes (PIN) by OBDII
2) Programming keys by OBDII. Preparation of dealer's keys.
3) Mileage recalibration by OBDII
4) Clearing crash data DTCs by OBDII
5) Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
6) Exchange speed limit of MMI-TV system

China VAG Vehicle Diagnostic Interface VVDI Function Added:

1. Support NEC 24C32, NEC 24C64 change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
2. Support GOLF5 MM7(9S12) change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
3. Add TA special chip pre-program. Directly pre-program ID48 to TA2,TA3, TA4, TA5 chips.

Standard Diagnostic Functions:

1) Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
2) For all electronic control units reading identification data
3) For all electronic control units read error (DTCs)
4) For all electronic control units clear error (DTCs)
5) Scan all units
6) Broadcast requests
7) Measured values
8) Adaptation

VVDI Special Functions:

1 Instrument CAN
(1) With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0
(2) You can read current odometer value
(3) You can change odometer value
(4) Added support for VDO Instrument Cluster 2006+
(5) Read/Program memory of instrument cluster immobilizer
(6) Reading security access code of the IMMOBILIZER
(7) Read/Write immobilizer related data

2 EZS - Kessy (Q7/A6/Allroad)
(1) With this function you can prepare dealer key/learn dealer key
(2) Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)

3 Instrument K-Line
(1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
(2) You can Read/Change odometer value
(3) Read PIN code
(4) Read/Write eeprom
(5) Read ROM/Flash from the Instrument cluster

4 Engine Control Unit
(1) Read MED17 flash memory
(2) Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flashmemory via OBDII (K and CAN). Calculation of checksums while programming, ME7.1.1, MED9.x, ME7.5)
(3) Read/Write flash counters (EDC16)
(4) Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
(5) Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED9.x, Simos PPD)
(6) Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
(7) Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
(8) Odometer correction (EDC15, EDC16)

5 Kessy adaptation
This function can be used for adaptation of brand new kessy units to the car. This adaptation can be by CAN TP2.0, K-KWP2000 and also can be used with Porsche Cayenne.

6 TV activation ED1/ED2
(1) Using this special function you can change speed limit of MMI compatible vehicles to change speed where TV becomes OFF

7 Key learning
With this function you can learn key/transponder to the vehicle

8 Dump tool
With this function you can calculate security access codes, change odometer and so on from EEPROM dump from the corresponding unit

9 Airbag
With this special function you can Read/Write EEPROM memory of the airbag module
Clear the crash data of the airbag module

10 Custom Read/Write
Using this application you can read/program memory in some electronic control unit

11 PIN Convertor

12 Service interval
Using this function you can perform reset of the service reminder, reset of the service interval parameters or change service interval options

13 Remote control adaptation
Using this application, you can learn remote controls

14 Navigation
Using this application, you can enable/disable the “Eject” button of the “Navigation” system

15 Cruise control system
Using this application, you can activate/deactivate a cruise control system and change the related
steering wheel electronics( SWE) configuration if SWE unit is available

Package list:

1 set x VVDI VAG Vehicle Diagnostic Interface
Xhorse V3.5.4 VVDI V-A-G Vehicle Diagnostic Tool Update Online Free Shipping
